Smart Intersection in 2 directions (on 1, 2, 3 lanes)
Function / Application
iSC4-LN1-DT1 is the system to crack down in 2 directions (on 1, 2, 3 lanes) at the intersection through the ICT technology that analyzes in real time the images collected from the cameras at the edges.
Crackdown on traffic signal violation
Crackdown on crossing over the centerline
Crackdown on the law for intersection traffic method
Crackdown on speed limit violation
Collection of real-time traffic big data

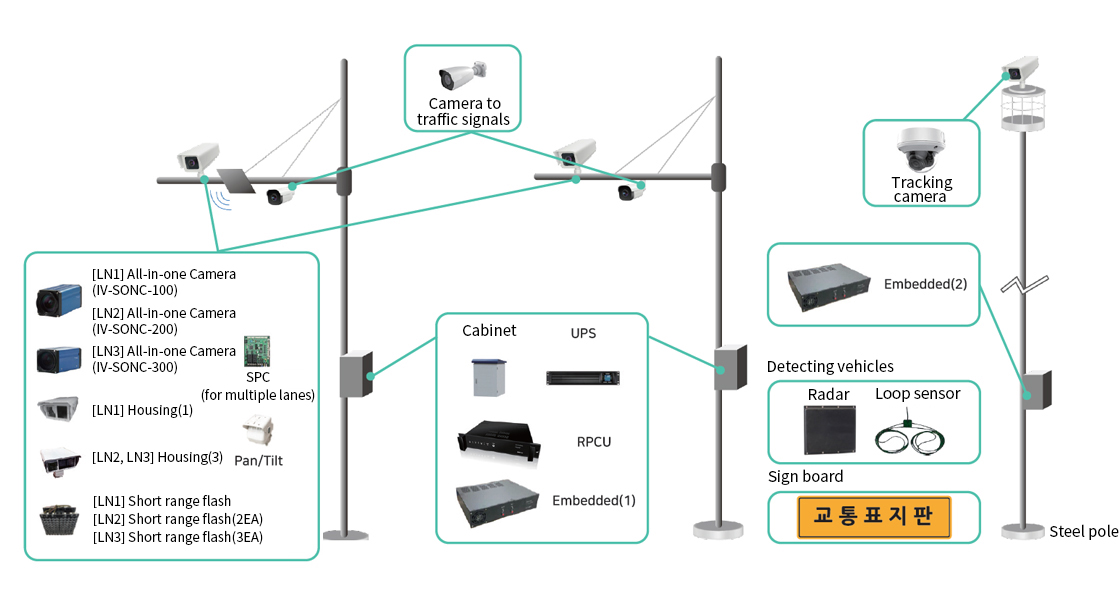

Configuration
iSC4-(LN1, LN2, LN3)-DT1
Certification number: No. 2021-516 / Product identification number: 24411833, 24411835, 24411840
| Product | Model | Specifications |
|---|---|---|
| All-in-one camera | (LN1) IV-SONC-100 (LN2) IV-SONC-200 |
- 2048x1536 pixels - Global shutter 1/1.8” CMOS sensor - 30 fps @ full resolution (MJPEG,H.264) - 15 fps @ full resolution (YUV420) - 6~210mm(x35) 3 motorized IR corrected zomm lens - 1 click auto focus |
| (LN3) IV-SONC-300 | - LPR 9M pixel - 4K UHD 30 fps @ 4096 x 2160 pixels - Global sutter 1“CMOS sensor - 10~300mm Zoom Lens - GenlCam, ONVIF - JPEG, H.264/H265 |
|
| Tracking camera | IV-SOTC-100 |
1. Camera - 1600 x 1200 pixels , 1/1.8” 30fps, Global shutter CMOS - MJPEG & H264 streaming - ONVIF Support (Optional) - Bracket mode (Max. 4frames) |
|
2. Lens - Bacl Focal Length : 7.57mm - Resolution : 3MP - Mount: M12 x 0.5 - Iris : Fixed - Sensor : 1/1.8” CCD/CMOS - Image Format : 7.18x5.38,8.933 |
||
| Camera to traffic signals | IV-SOSC-100 | - 1/2.8”Progressive Scan CMOS - 1920 x 1080@30fps - 4.7 ~65.8mm vari-focal (x12 electro-motorized zoom) - H.265, H.265+ - 120dB WDR - IP67 - Auto-iris, PoE |
| Short range flash | (LN1) IV-SIPL-100 (LN2) IV-SIPL-100 (LN3) IV-SIPL-100 |
- Input voltage : +24VDC +/- 1.5V - Consumption current : 1.0A / 30 Hz (With FAN) - Control signal : Open Collector, TTL, Optocoupler - Trigger input range : ~ 30 Hz - Operating humidity range : Not more than 90% - Storage temperature range : -30 C ~ +80 C |
| Housing | (LN1) IV-SOHL-400 |
- Size: 400×460×192 (H) mm - Material: Aluminum - Filter: Front filter - Opening at top - Cable inlet (Water-tightening connector, 12/24 pin round AMP connector) - Built-in fan/heater - Color: Ivory |
| (LN2) IV-SOHL-500 (LN3) IV-SOHL-500 |
- Size: 493×565×192 (H) mm - Material: Aluminum - Filter: Front filter - Opening at top - Color: Ivory - Cable inlet (Water-tightening connector, 12/24 pin round AMP connector)- Built-in fan/heater |
|
| SPC(for multiple lanes ) | IV-SILC-100 | - Camera control and P/T control board |
| P/T | SPT-301 |
- Input voltage: AC 220 V 60Hz / AC 110 V 60Hz / AC 24 V 60Hz - Power consumption: Pan: 6W / Tilt: 15W – Operation speed: Left/Right: 6.2˚/sec, Up/Down: 3˚/sec - Operation angle: Left/Right: 0~355˚, Up/Down: +30˚~ -60˚ - Operating Temperature: -40℃~+70℃ - Operating Humidity: Below 90% - Allowable load: max. 30kg – Size: 290(L)x250(H)x213(W) |
| Embedded 1 | IV-SIIX-100 |
- LPR,Detecting signals - CPU : Quad-core ARM® Cortex-A57 @ 1.43 GHz - GPU : 128-core Maxwel - RAM : 4 GB 64-bit LPDDR4 25.6 GB/s - HDD: 512GB - OS : Ubuntu |
| Embedded 2 | IV-SIIX-200 |
- Tracking AI algorithm in operation - CPU : Carmel ARM (6 cores,64bit) - GPU : 384 NVIDIA CUDA Core - RAM : 8GB LPDDR4 - HDD : 512GB - OS : Ubuntu |
| RPCU | IV-RPCU-200 |
- Input voltage: AC 220v, 50–60 Hz - Output voltage: AC22-V, 50~50 Hz, 4 ports - Rated output: 1.76KW - LAN communication: 1 port TCP/IP - Serial communication: 1 port 9600bps - Temperature: 10℃~ 80℃ - Software: Server program - Size: 420(W)x320(D)x88(H)mm |
| Cabinet | IV-SORA-100 |
- Material: SUS–304 / Powder Coating with white urethane - Temperature Control: Built-in fan - Door: Both-sided door - Size: 640(W)X640(D)x900(H)mm |
| UPS | IV-SORA-101 |
- Power capacity: 900W/1500VA - Output voltage: 230 V - Output frequency: 47~63 Hz (based on 60 Hz) - Output waveform: Pure Sino wave - Input voltage: 230 V - Input voltage range: 180 to 287 V (170 to 300 V) - Input frequency: 50/60 Hz +/-3 Hz (auto-sensing) |
| Steel pole 1 | IV-SOCP-200 | - 8000x 267ø, 6000 arm [mm] |
| Steel pole 2 | IV-SOCP-300 | - 430øx24000[mm] |
| Sign board | IV-SIED-100 | - Material: Aluminum / General Reflection - Size: 1200×2500 2T Sign board for pre-caution |
| Detecting vehicles | V-SIID-300 |
- Channel No.: Dual Channel / PACK - Power: Single DC Source: +12 to 30V DC - Power/communication line connection: CASCADE connection method (varied on models) - Monitoring the real-time loop status (failure/normal for head and lead) - Temperature: -34°C to +74°C (Operating) - Operation: Presence mode operation |
| Negotiable on the unit price | total contract cost and design |
